Category | 6U CPCI |
Dissipate heat | Compatible design |
PlatForm & Chipset | CM236/QM170 |
Standard Configuration CPU | i7-6820EQ / i7-6822EQ / E3-1505M V5 |
C/T | 4C-8T / 4C-4T / 4C-8T |
Base / Turbo Frequency | 2.8GHz / 2.0GHz / 2.8GHz |
CPU TDP | 45W / 25W / 45W |
Memory | Onboard 16G Max Up to 16GB |
SSD | Onboard 2.5" SATA-III connector*1 and Onboard SSD*1(64G / 128G Option) |

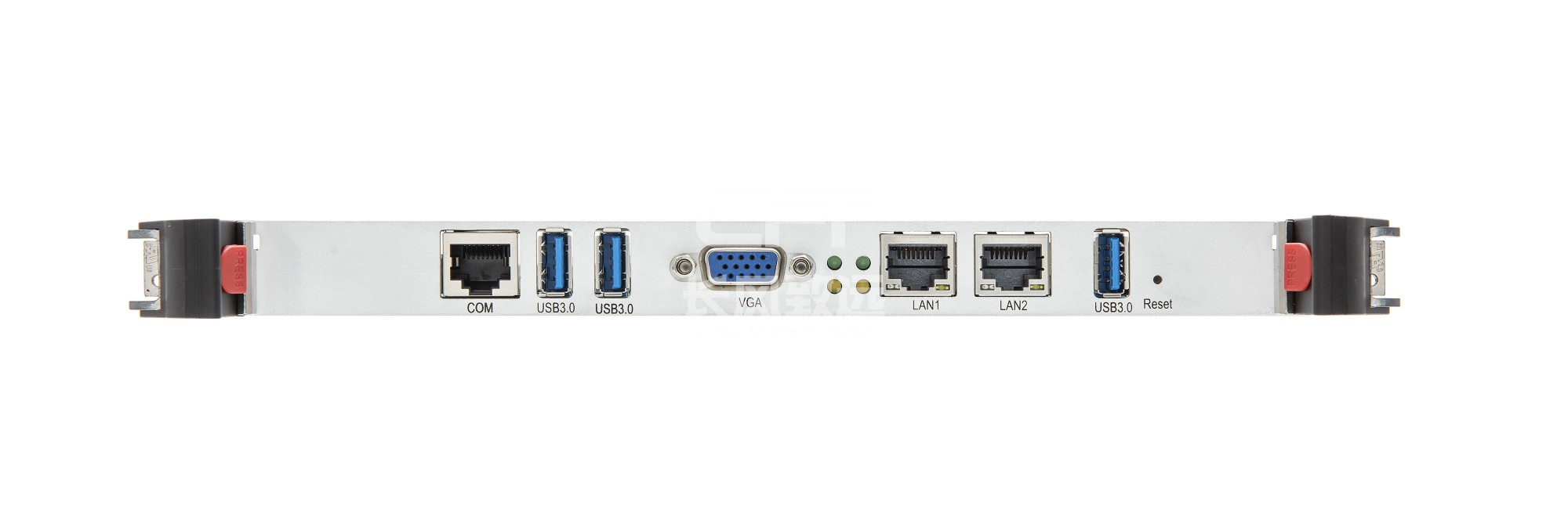

Front I/O | 3*USB3.0/2*1GbE/1*VGA/1*Console RJ45(RS232) |
Remarks | Skylake DVI+EDP |
CPCI Connector | J1: 32-bit PCI local bus J2: 64-bit PCI local bus J3: PICMG2.16 2*GbE+RTM area/PCIe x16 Gen3 Support J4: 2*USB2.0/1*GbE/1*Audio/2*SATA/1*DVI/1*eDP J5: 1*DVI/1*VGA/4*USB2.0/2*USB3.0/2*SATA/ 4*RS232/422/485/1*GbE |
