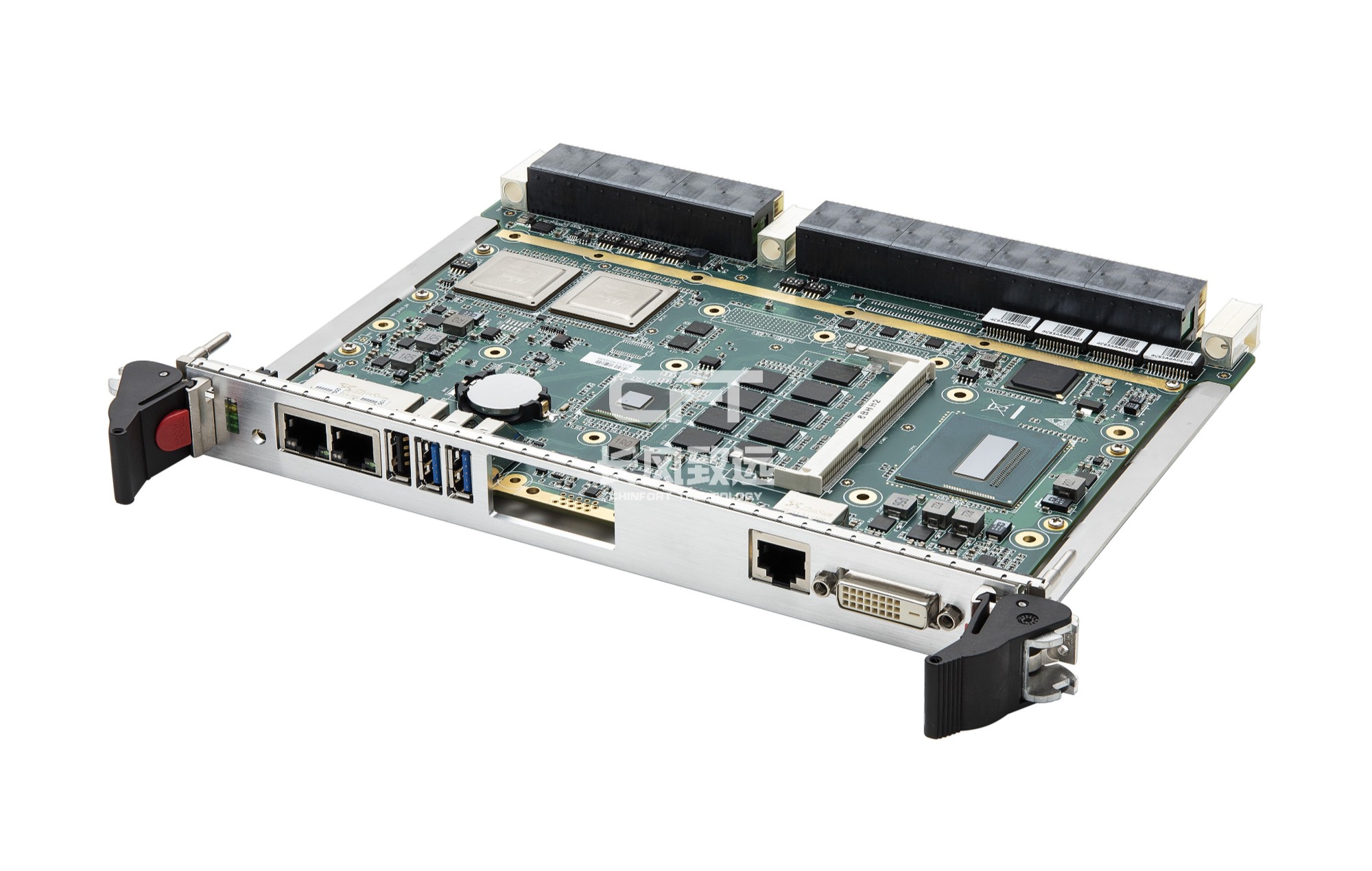

Dissipate heat

Compatible design

PlatForm & Chipset

Haswell,QM87

Standard Configuration CPU

Intel? Core? i7-4700EQ Processor

C/T

4C/8T

Base / Turbo Frequency

2.4GHz / 3.4GHz

CPU TDP

47W

Memory

Onboard 8G + SO-DIMM

SSD

Onboard 64G SATA SSD

Front I/O

1*DVI / 1*RS232 / 2*GBE / 2*USB3.0 / 1*USB2.0

Remarks

EDP

VPX Connector

P1: PCIe (2 * X4 + 1 * X8 or 2 * X8 or 1 * X16)

P2: PCIe (4 * X4 or 2 * X4 + 1 * X8 or 2 * X8 or 1 * X16)

P3: 64S PMC IO

P4: 8d+12d XMC IO,2*10/100/1000BT (alternative of SerDes) fr

om I350

P5: 2*USB3.0/2*USB 2.0/3*SATA-III/2*DVI/2*UART(RS232/422/

485 switchable)

P6: 2*10/100/1000BT/1*Audio(ALC887)/2*USB 2.0/KB/Mouse F

rom EC;1*SATA II
