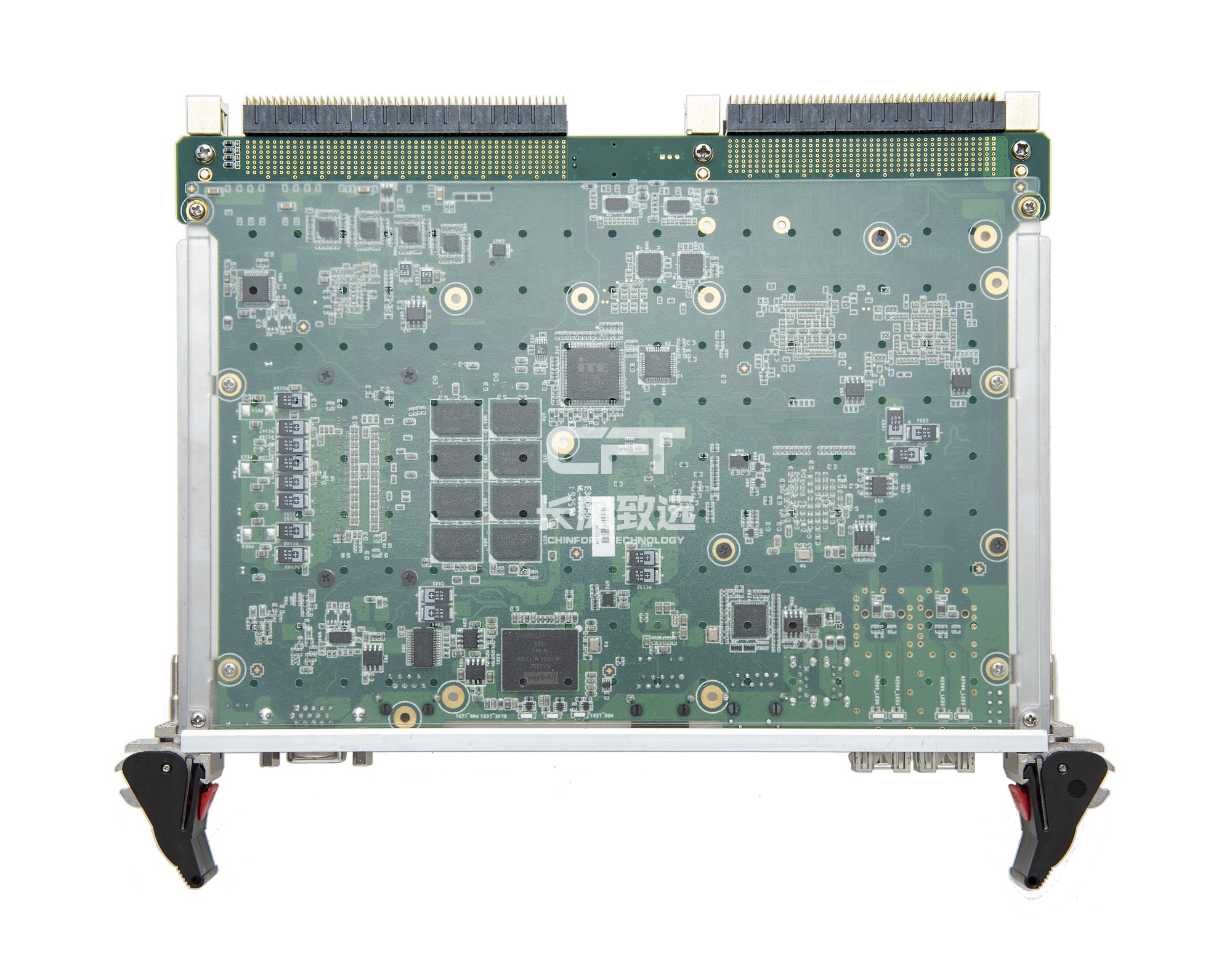

PlatForm & Chipset

Skylake,CM236

Standard Configuration CPU

 Intel? Core? i7-6822EQ Processor

C/T

4C/8T

Base / Turbo Frequency

2.0GHz / 2.8GHz

CPU TDP

25W

Memory

Onboard 16G

SSD

Onboard 128G SATA SSD+M.2(SATA/NVME PCIeX4)

Front I/O

1*VGA / 1*RS232(J30J) / 2*USB3.0 / 2*GBE/2*10G SFP / 1*System Reset

Remarks

2*10G SFP

VPX Connector

P1: PCIe (4 * X4 or 2 * X8 or 1 * X16)

P2: PCIe (4 * X4 or 2 * X8 or 1 * X16)

P3: None

P4: 8d+12d XMC IO,2*10/100/1000BT (alternative of SerDes) from I350

P5: 2*USB3.0/2*USB 2.0/3*SATA/2*DVI/2*RS-232/422/485/1*VGA/1*eDP(2 Lane)

P6: 2*10/100/1000BT/Line-in/Line out/Mic/5*USB 2.0/PS/2/1*SATA/2*RS-232/422/485
