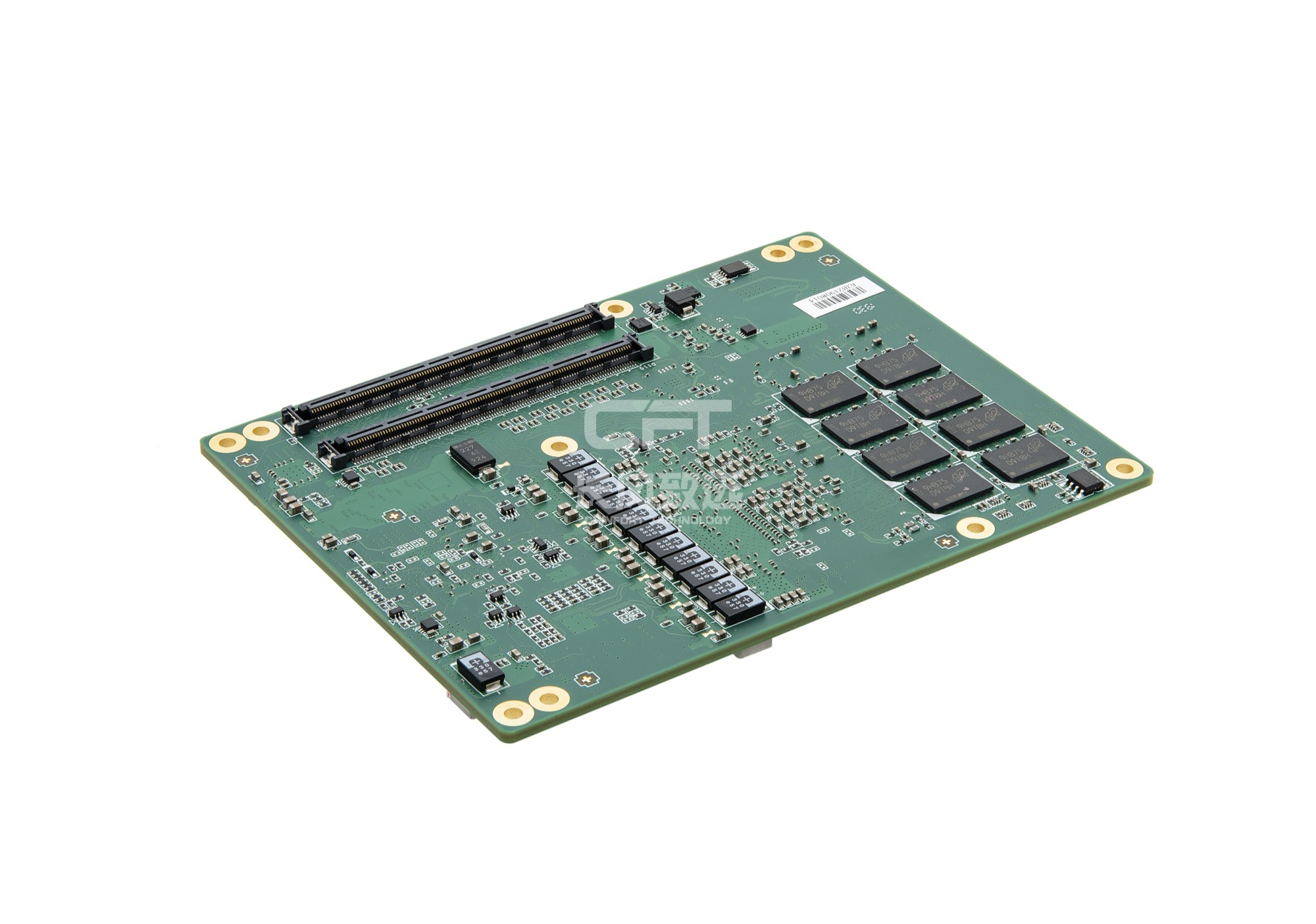

Pin-out Type

COM Express R2.1 Type 6 pin out

Platform

Processor

i7-6820EQ / 6822EQ

i5-6440EQ / 6442EQ

i3-6100E / 6102E

E3-1505M V4 / 1505L V4

Celeron G3900E

Base Frequency

2.8 GHz / 2.0 GHz

2.7 GHz / 1.9 GHz

2.7 GHz / 1.9 GHz

2.8 GHz / 2.0 GHz

2.4 GHz

Turbo Boost Freq.

3.45 GHz / 2.8 GHz

3.4 GHz / 2.7 GHz

N/A  /  N/A

3.45 GHz / 2.8 GHz

N/A

Core/Tread

(4C/8T) / (4C/8T)

(4C/4T) / (4C/4T)

(2C/4T) / (2C/4T)

(4C/8T) / (4C/8T)

(2C/2T)

LLC

4MB / 8MB

8MB / 6MB

3MB / 3MB

8MB / 8MB

2MB

CPU TDP

45W / 25W

45W / 25W

35W / 25W

45W / 25W

35W

Chipset

Core with QM170; Xeon with CM236

BIOS

AMI EFI BIOS

Memory

Technology

Dual Channel DDR4,Channel A / B 260Pin SO-DIMM

ECC Support

supported

Channel/Socket

Dual channels

Max. Capacity

Up to 32GB

Graphics

Controller

Intel? HD Graphics P530

Base/Turbo Freq.

350/1000MHz / 350/1000MHz

350/1000MHz / 350/1000MHz

350/950MHz / 350/950MHz

350/1050MHz / 350/1000MHz

350/950MHz

Graphics Memory

Intel DMVT5.0, share memory up to 1024MB

3D/HW Acceleration

HW Encode: H.265/HEVC, H.264, MPEG2, HW Decode: H.264, Direct3D 12

(2015)/11.2/11.1/10/9,Direct2D, OpenGL 4.4, OpenCL 2.0/1.2

Display

VGA

Support up to 1920 x 1200 @ 60 Hz

LCD

LVDS support 2 channels 18/24-bit, up to 1920 x 1200 @ 60Hz Optional e

DP up to 3840 x 2160 @ 60Hz 24bpp or 4096 x 2304 @ 60Hz 24bpp

DDI

2 Port confgurable to HDMI1.4/DVI/Displayport1.2 HDMI up to 4096 x 216

0@24Hz,DVI up to 1920 x 1200@60Hz, DP up to 4096 x 2304 @ 60Hz

DP up to 3840 x 2160 @ 60Hz 24bpp or 4096 x 2304 @ 60Hz 24bpp

Multiple Display

Dual display, Triple display with each display combinations

Expansion

PCI Express x16

1 PCIe x16 confgurable to 1 x16, 2 x8, 1 x8 + 2 x4

PCI Express x1

PCI Express Gen3 (8.0 GT/s)

8 PCIe x1, confgurable to x4 or x2

Audio Interface

Intel HD Audio Interface

LPC

Yes (24MHz)

Serial Bus

SMBus

Yes

I2C Bus

Yes

Ethernet

Controller

Intel i219LM

Speed

10/100/1000 Mb

I/O

SATA

Supports 4 SATA Gen 3 (8.0 Gb/s)

Support RAID 0/1/5/10, AHCI 1.3

USB3.0

4 Ports

USB2.0

8 Ports

SPI Bus

For BIOS only

GPIO

8-bit GPIO

Watchdog

65536 level, 0 ~ 65535 sec

COM Port

2 Ports (2-wire)

Express Card

2 Ports

TPM

NA

Smart Fan

1 Ports  on Carrier Board

Power

Type

ATX: Vin, VSB; AT: Vin

Supply Voltage

Vin: 8.5V (9V-5%) ~ 20V (19+5%); VSB: 5V ±5%

Burn in: (8GB DDR4 1600) i7-6820EQ +12V @ 48.7W

Power Consumption

Idle: (8GB DDR4 2133) i7-6820EQ +12V @ 5.2W  *Only for reference and w

ill depends on custom software loading, detail refer to user manual

Environment

Temperature

Operating : 0 ~ 60° C (32 ~ 140° F), (Extend model TBD)

Storage : -40 ~ 85° C (-40 ~ 185° F)

Humidity

Operating: 40° C @ 95% relative humidity, non-condensing

Storage: 60° C @ 95%relative humidity, non-condensing

Vibration Resistance

3.5 Grms

Mechanical

Dimensions

95 x 125 mm (3.74" x 4.92")
